Under the power of the CDU circulation pump, the cooling medium is evenly distributed to each submerged tank through the secondary side cluster ring network supply pipeline and carries out heat. After absorbing heat, the cooling medium converges to the cluster ring network return pipeline and re enters the CDU, forming a closed cooling cycle. The heat is transferred to the primary side cooling medium through the internal heat exchanger of the CDU, and then transported to the external cold source for heat dissipation through the EDU. The cooled cooling medium enters the CDU again through the primary side ring network for heat exchange, thereby achieving the cooling function of the entire server liquid cooling system.

Solution

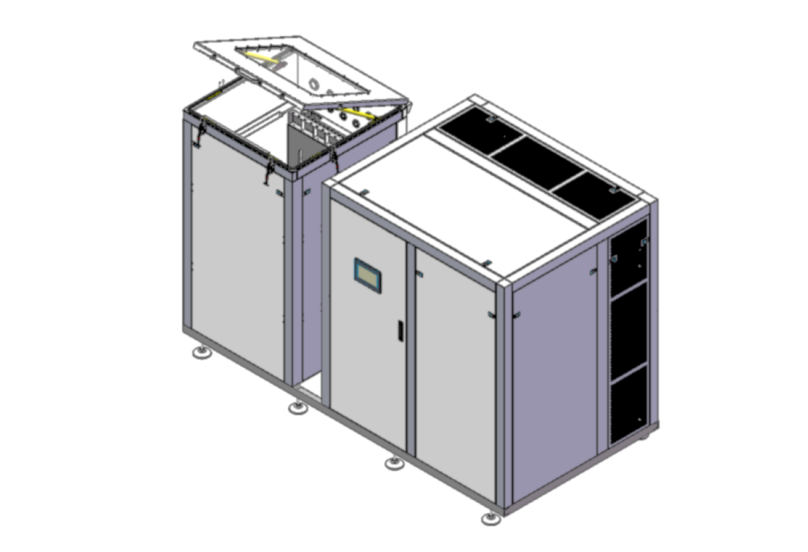

• CDU (water pump, heat exchanger, sensor, control system, etc.)
• Secondary side cluster ring network (pipelines, valves, liquid collection tray, etc.)
• Immersion Tank

Features

• The heating element is completely immersed in the cooling medium, which can achieve full liquid cooling
• The heating element is in direct contact with the cooling medium for heat exchange, with low thermal resistance
• The cooling medium has high insulation performance, is safer, and has no risk of overheating, explosion, or combustion
• Better cooling performance and lower power consumption
