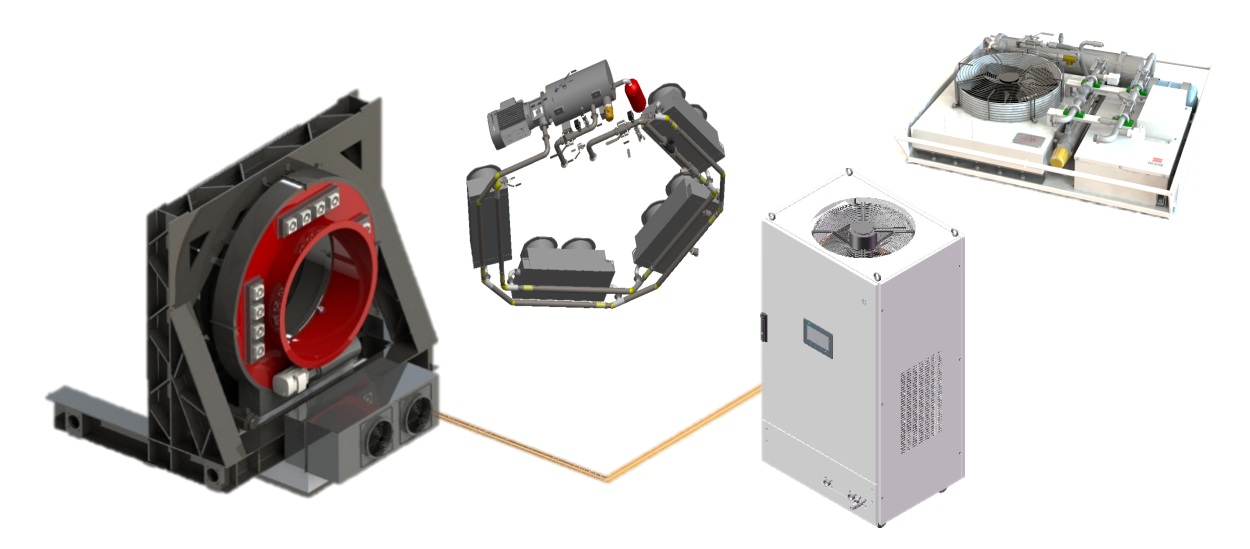

BEEHE has developed a liquid cooling system with a special drive module for this particular application, which effectively solves the heat dissipation problem of linear accelerators while ensuring reliability. The medical accelerator liquid cooling system adopts an integrated design, which is fixed to the accelerator frame through a chassis bracket. Air enters below the accelerator casing, along the axial direction of the holes on the outer wall of the accelerator, and enters the cold aisle. Cold air circulates in the cold aisle, exiting from the outlet position of the chiller unit, while hot air circulates in the hot aisle and exits from the outlet of the accelerator housing. The exhaust outlet of the accelerator casing will be equipped with a fan to extract hot air into the environment.

Solution

• Integrated chiller
• Split type chiller
• Wind liquid liquid cooling system
• O-ring liquid cooling system

Features

• High temperature control accuracy and minimal pressure fluctuations during operation
• When the load heat changes significantly, it can effectively ensure that the water supply temperature is within the range of T ± 1 ℃
• Reliable refrigeration performance and automatic control capability
• Rotating design, easy to install and maintain
