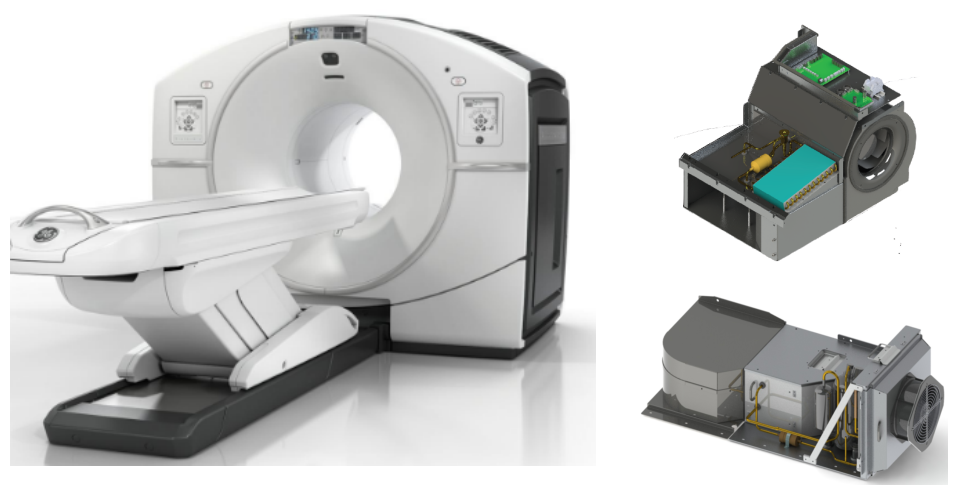

When the system is running, the air inside the equipment circulates with the operation of the evaporator fan. The hot air will be sucked in from the top of the PET ring by the evaporator fan, cooled by the low-temperature flowing refrigerant in the evaporator, and then sent back through the air outlet to cool the heating electronic and electrical equipment. The low-temperature environmentally friendly refrigerant in the evaporator absorbs heat and is compressed by the compressor before being discharged to the condenser for heat dissipation. The heat absorbed inside the equipment is then discharged to the external environment by the condenser and condenser fan. The closed internal circulation effectively protects the internal equipment from adverse environmental effects and regulates the temperature of the equipment's internal environment with clean air. The control board precisely controls the start stop and operating speed of the compressor, condenser fan, evaporator fan, etc. through the return air temperature sensor.

Solution

• Integrated air conditioner
• Split air conditioner

Features

• Adopting internationally renowned brand compressors to ensure a ten-year service life of the refrigeration system
• High air volume, small temperature difference, and small temperature gradient
• Variable frequency control system with high temperature control accuracy
